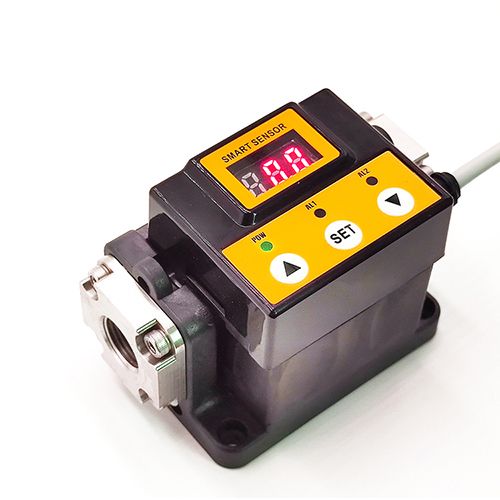

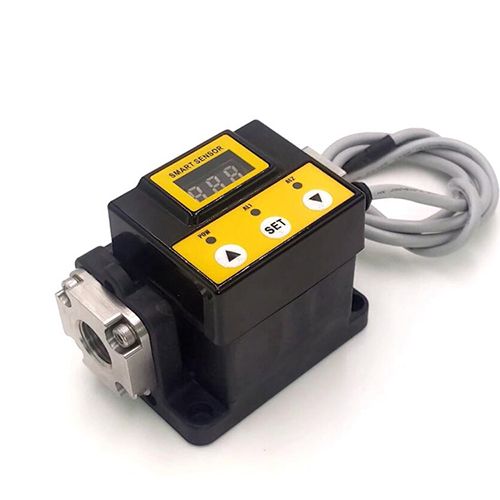

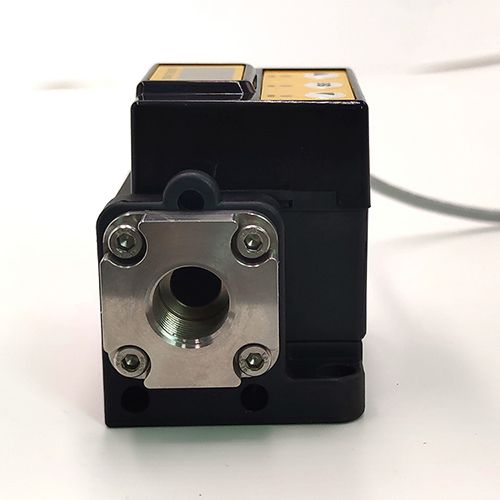

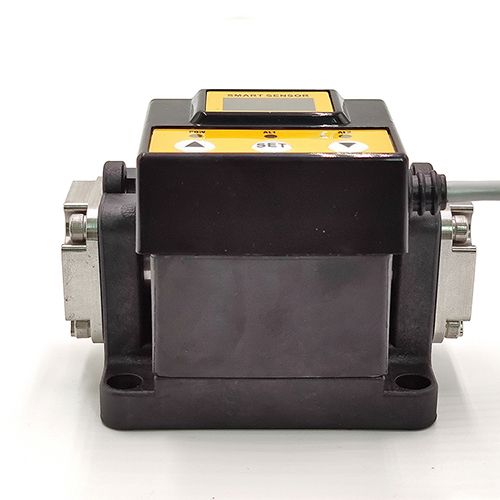

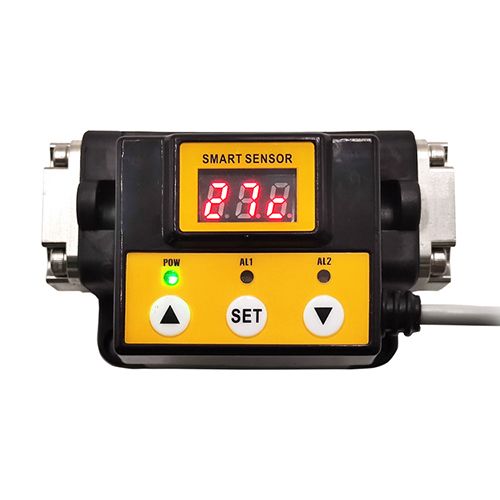

FXJ Flow & Temperature Sensor Product Features:

1. Integrated temperature and flow measurement

2. 3-digit LED display

3. Intelligent temperature alarm contact output

4. Intelligent flow alarm contact output

5. Wide measurement range with low minimum flow velocity

6. 4-20mA analog + pulse signal output

7. High accuracy and reliability

8. Scale/corrosion resistance with minimal pressure loss and excellent repeatability

Technical Parameters

Flow Parameters:

Measuring range: 0.5-15 L/min

Accuracy: Class 0.5 / Class 0.3

Temperature Parameters:

Measuring range: 0-100℃ (customizable)

Accuracy: ±0.1℃

Display: 3-digit LED

Switching time: ON/OFF ≤2s (1-2s adjustable)

Output Specifications:Dual alarm contacts + 4-20mA + pulse output (configurable)

Alarm contact type: NPN/PNP

Insulation resistance: 50MΩ @100VDC

General Specifications:

Power supply: 24VDC

Power consumption: 3W

Housing material: ABS

Connection material: 304 stainless steel

Operating environment: -20℃ to 85℃,<85% RH

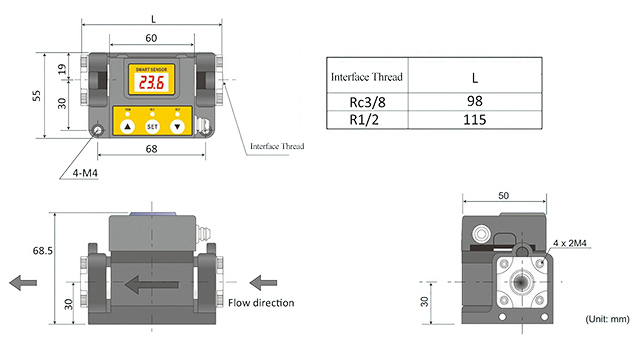

STRUCTURE DIAGRAM：

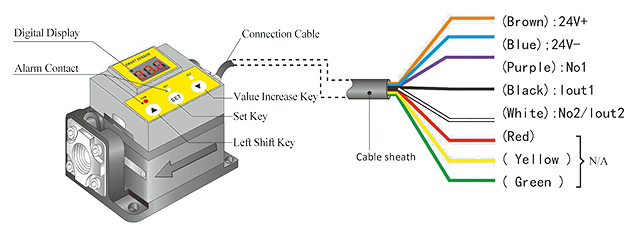

WIRING DIAGRAM：

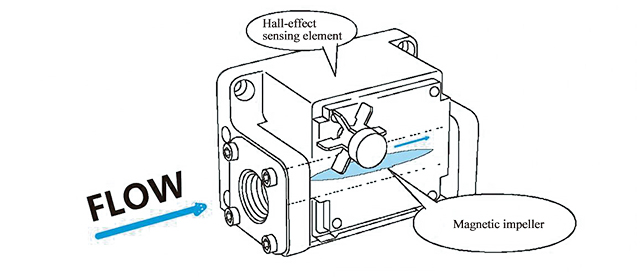

Working Principle:

A magnetized impeller mounted in the sensor's flow path rotates proportionally to fluid velocity.This rotation generates pulse signals via Hall-effect switching according to Faraday's Law.The transmitter converts pulse frequency to electrical signals for remote display of instantaneous/cumulative flow values.

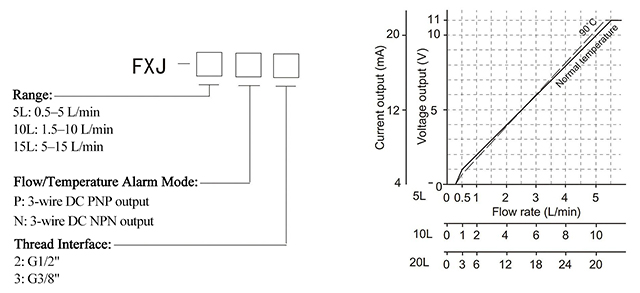

ORDERING INFORMATION：

APPLICATION NOTES：
