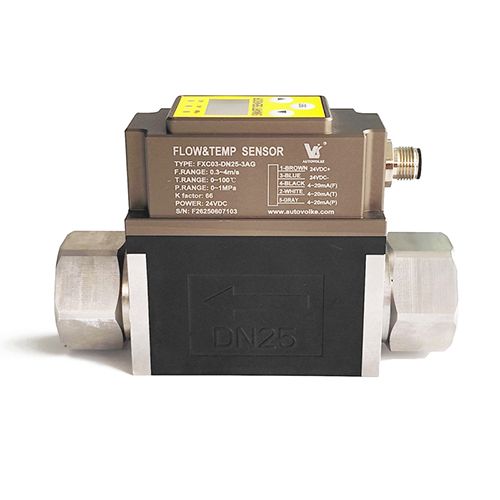

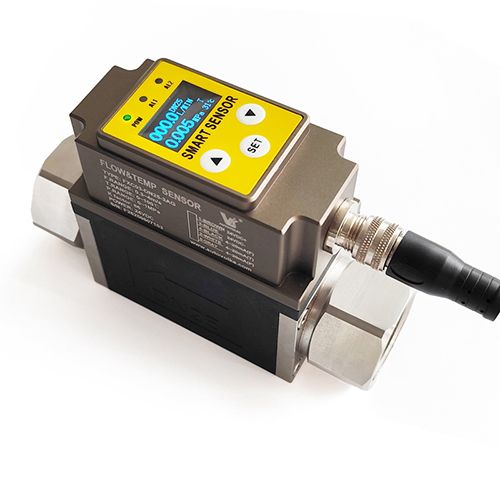

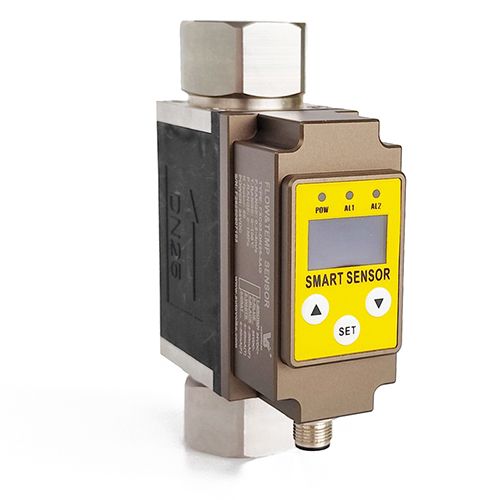

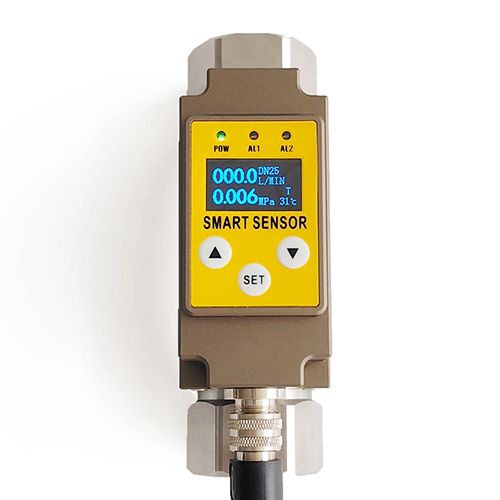

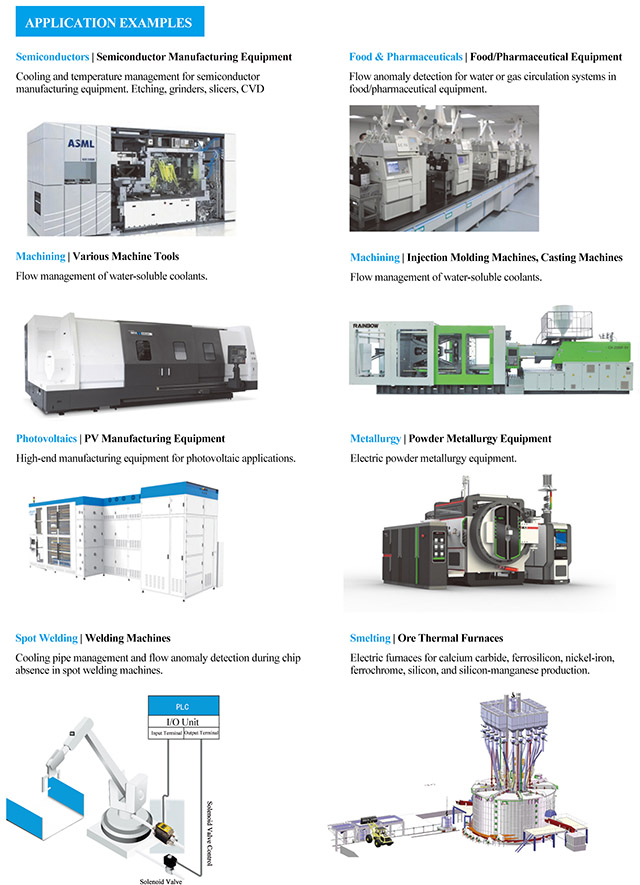

Technical Features:

1.Integrated flow/pressure/temperature sensor

2.Intelligent flow alarm contact output

3.Intelligent pressure alarm contact output

4.Intelligent temperature alarm contact output

5.RS485 communication or triple analog outputs(flow/pressure/temperature)

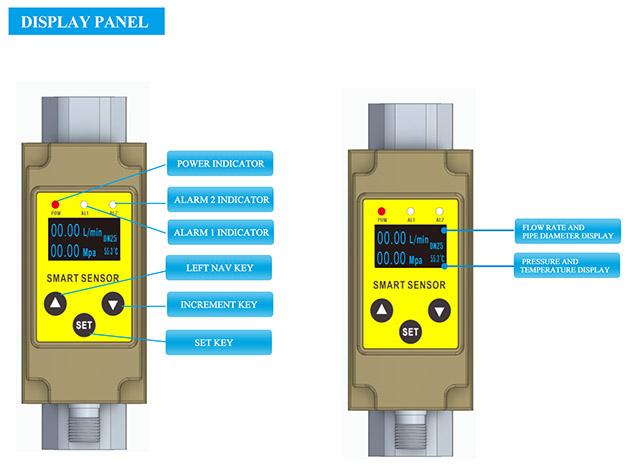

6.High-visibility self-illuminating OLED display

7.High accuracy with stability and reliability

8.Scale/corrosion resistance

9.Wide measurement range with low minimum flow velocity

10.Minimal pressure loss and excellent repeatability

Working Principle:

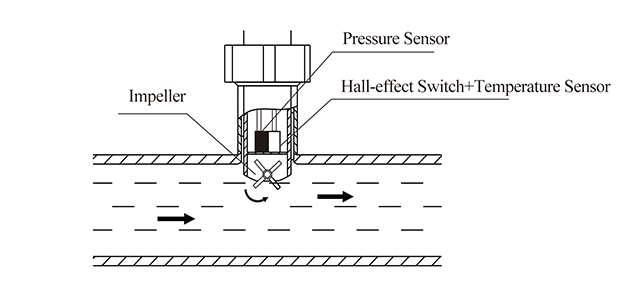

As shown in the schematic diagram,the FXC03 sensor probe integrates a pressure sensor,Hall-effect switch,and temperature sensor,while a bearing-supported impeller is centrally mounted in the pipeline.When fluid flows through the pipeline,it impacts the impeller blades,causing rotation proportional to flow velocity.The rotating magnetized impeller induces Hall-effect pulse signals proportional to flow rate,which the transmitter converts to electrical signals;simultaneously,the pressure sensor outputs pressure data and the temperature sensor outputs temperature signals.

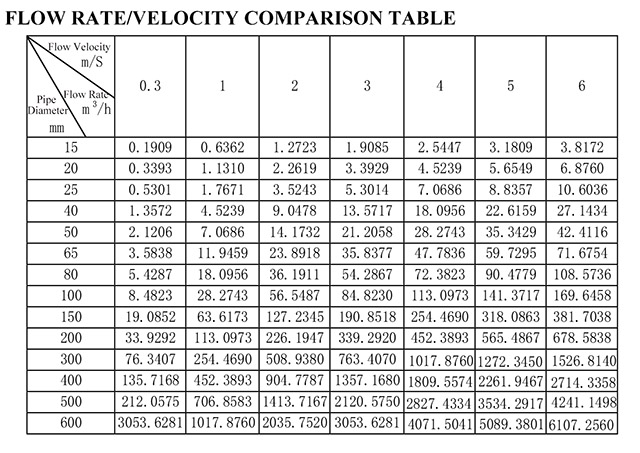

Flow Parameters:

Measuring Range:0.3–6 m/s

Accuracy:Grade 1 to 5

Pressure Parameters:

Range:-0.1 to 0–1 MPa

Accuracy Class:0.25,0.5

Temperature Parameters:

Measuring Range:0–100°C(customizable)

Accuracy:±1°C

Other Parameters:

Display:OLED

Alarm Contact Type:NPN,PNP

Output:Three-channel 4–20mA(Flow/Pressure/Temperature);RS485 Communication+Alarm Output(configurable)

Insulation Resistance:50 MΩat 100 VDC

Operating Voltage:24 VDC

Power Consumption:3 W

Housing Material:Anodized Aluminum Alloy

Interface Material:304 Stainless Steel

Environmental Conditions:-20–85°C,≤85%RH

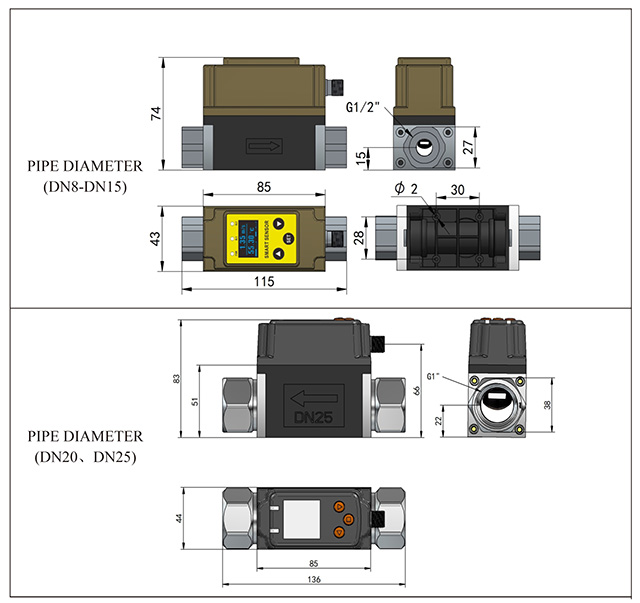

STRUCTURE DIAGRAM：

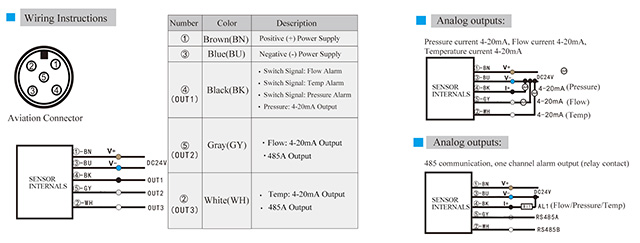

WIRING DIAGRAM：

INSTALLATION INSTRUCTIONS：

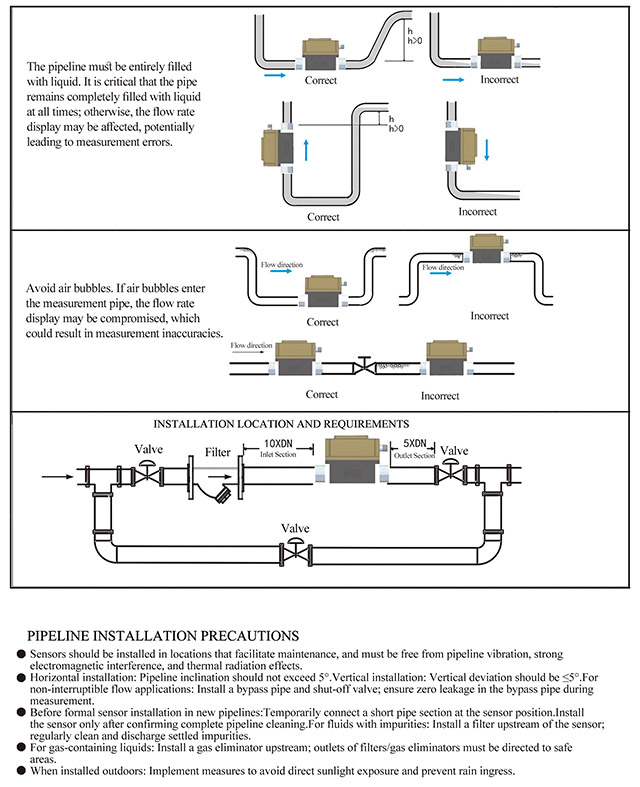

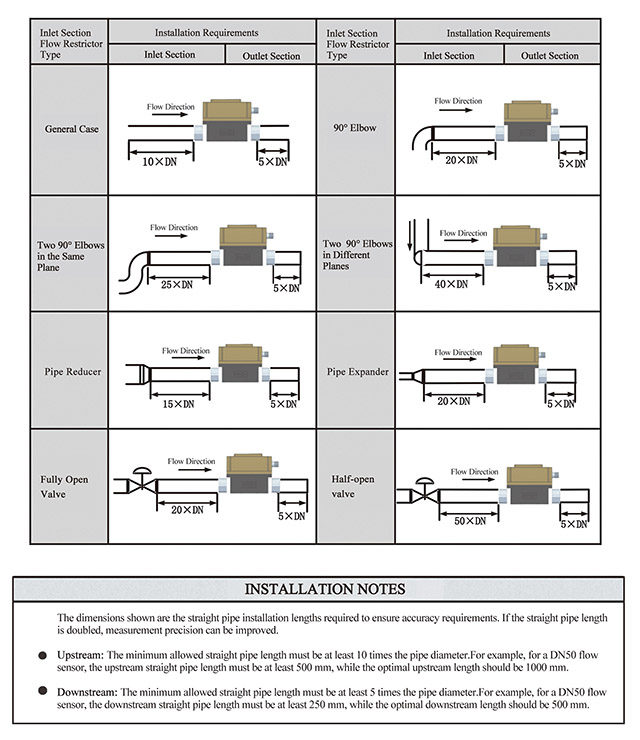

When installing the flow sensor, take into account the operating conditions to ensure accuracy,and install it in accordance with the requirements specified in the chart:

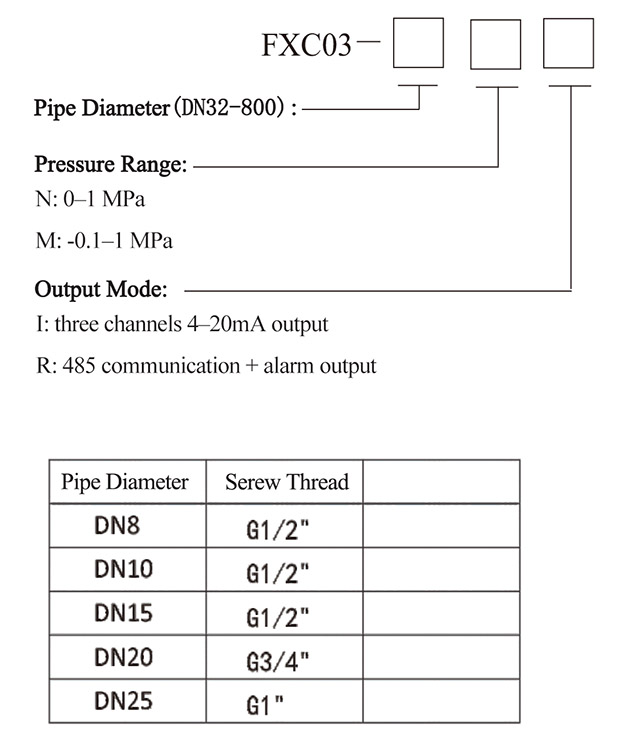

SELECTION GUIDE：
