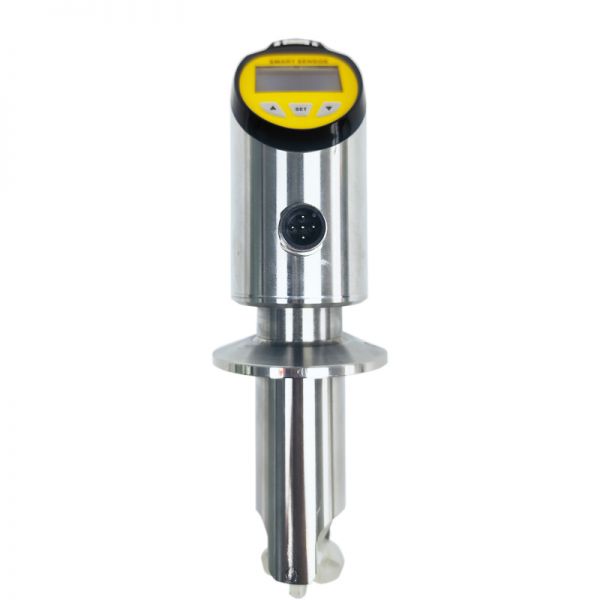

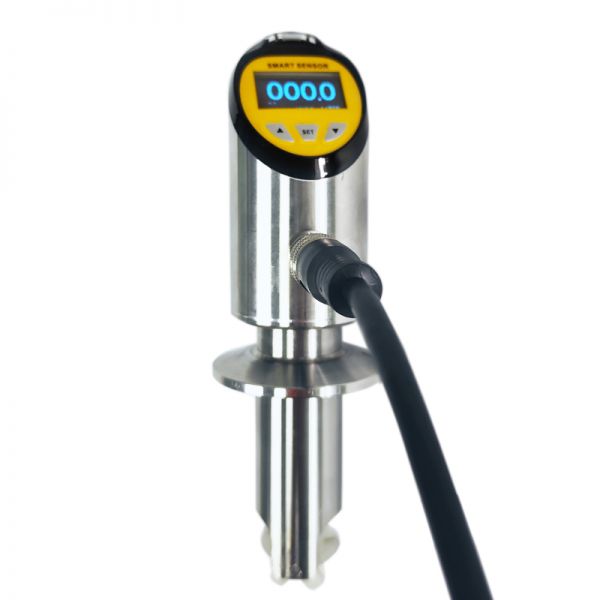

Product Characteristics:

1. Integrated flow/temperature measurement

2. Intelligent temperature display with alarm contact

3. Wide measurement range with low minimum flow velocity

4. High accuracy and reliability

5. Clear digital OLED display

6. Configurable 4-20mA/pulse output

7. Scale/corrosion resistance with minimal pressure loss

8. Excellent repeatability

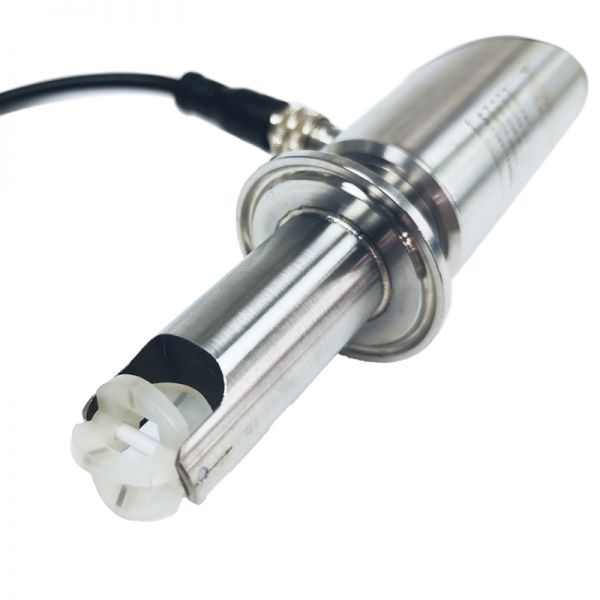

Working Principle:

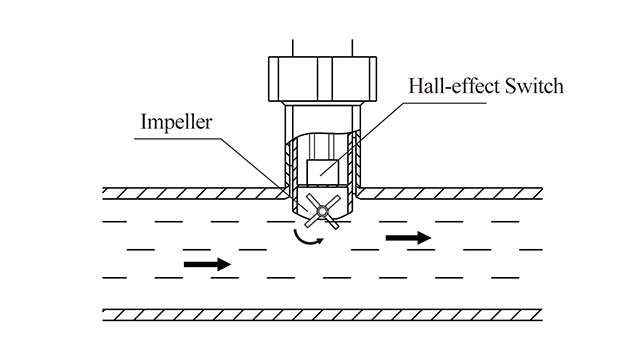

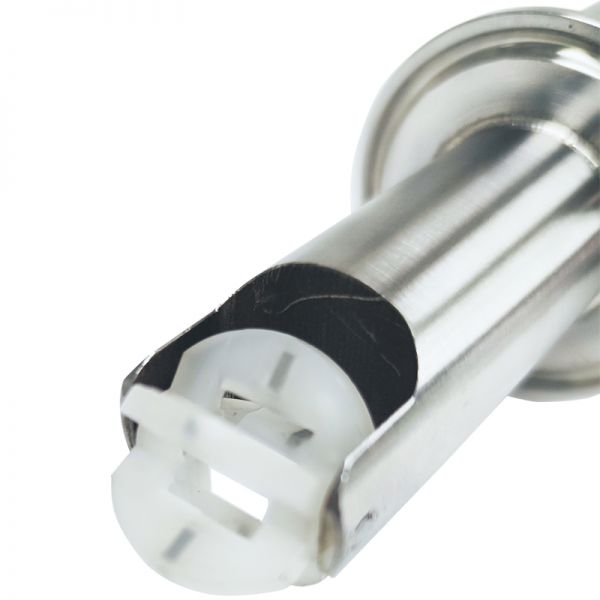

As shown in the schematic diagram, an impeller mounted on bearings rotates proportionally to fluid velocity. The rotating magnetized impeller generates Hall-effect pulse signals proportional to flow rate. These signals are converted to electrical outputs by the transmitter.

Technical Specifications:

Flow Parameters:

Measuring range: 0.1-6 m/s

Accuracy: Class 0.5

Temperature Parameters:

Measuring range: 0-100℃ (customizable)

Accuracy: ±0.1℃

General Specifications:

Display: OLED with alarm indication

Contact type: NPN/PNP

Output: Dual alarm contacts + 4-20mA + pulse (configurable)

Insulation resistance: 50MΩ @100VDC

Power supply: 24VDC

Power consumption: 3W

Housing material: Stainless steel

Connection material: 304 stainless steel

Environment: -20℃ to 60℃, ≤85% RH

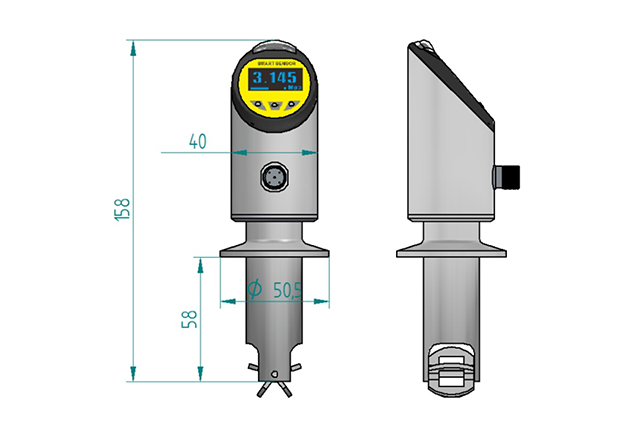

STRUCTURE DIAGRAM：

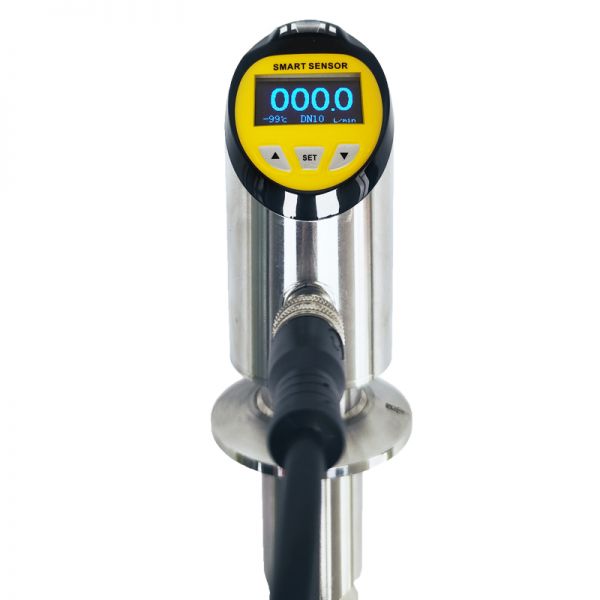

Panel Introduction:

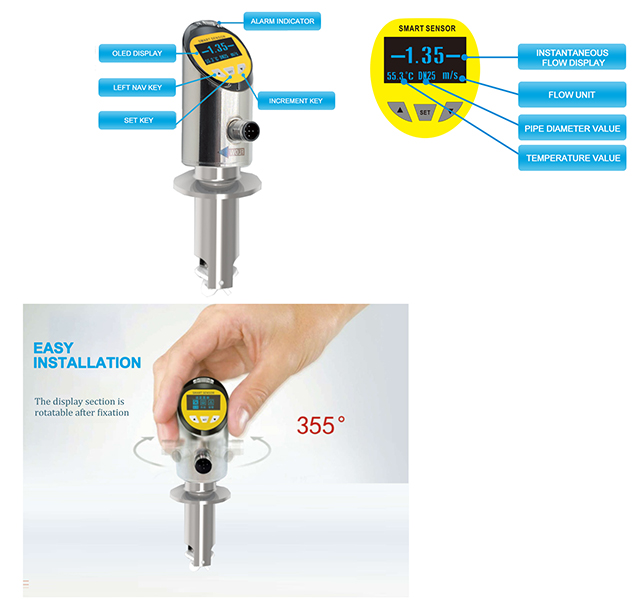

The FXC Sensor features an OLED display showing real-time pipeline flow rateor temperature values.Three buttons on the panel allow easy configuration of flow alarm contactsand temperature alam contacts.

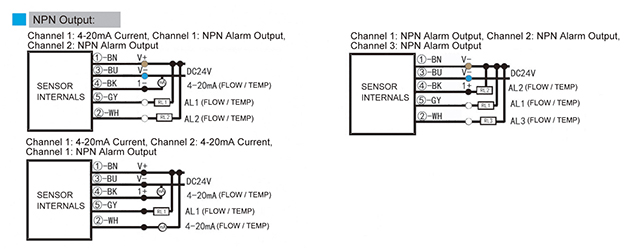

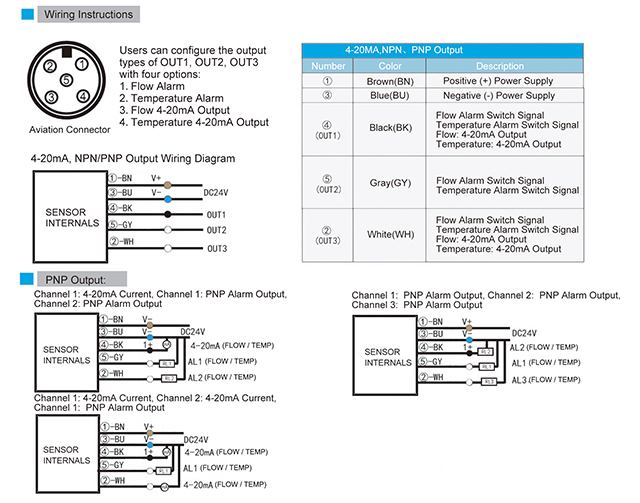

WIRING DIAGRAM：

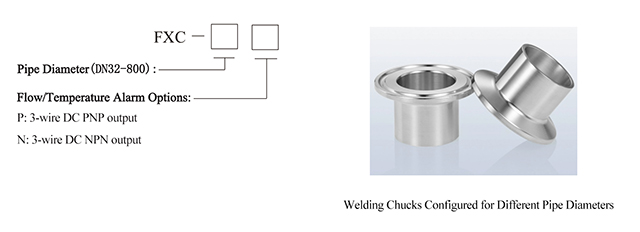

ORDERING INFORMATION：
