FXH02 Vortex Street Flow & Temperature Sensor Product Features:

1. Integrated temperature and flow measurement

2. Color TFT display screen

3. Intelligent temperature alarm contact output

4. Intelligent flow alarm contact output

5. Chinese+graphical interface with user-friendly menu

6. IO-Link communication

7. High accuracy and stability

8. Scale/corrosion resistance

9. Fully potted design with waterproof housing

10. Mobile QR code scanning for installation guidance;online engineer support without manuals

TFT COLOR SCREEN DISPLAY   |  ENGLISH DISPLAY MENU, MORE USER-FRIENDLY

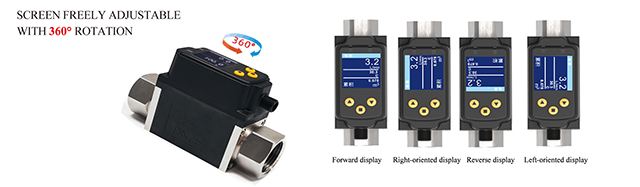

SCREEN ROTATABLE DISPLAY   | ADAPTS TO PIPELINES IN ANY DIRECTION

SUPPORTS 4-20MA、485、IO-LINK | BIDIRECTIONAL,COMMUNICATION, STANDARDIZED INTERFACE, STATUSMONITORING SELF-DIAGINOSIS

The new FXH02 flow & temperature sensor not only provides 4-20mA sienals for flow/temperature, 485 communication, and alarmswvitch output.but also inteerates 10-l ink communication technology and adds a cumulative flow function, meeting the needs of users acrossvarious industries.

SUPPORTS 4-20MA、485、IO-LINK  |  HIGH-PRECISION DATATRANSMISS ON COST REDUCTION, SIMPLE PARAMETER SETTINGS

IO- ink parameter values and settimgs can be easily modified via dedicated soltware, Sensors can be replaced immediately using the same

parameters from the data storage of the IO-Link master station,requiring no additional configuration for simple and convenient operaion.

Flow Parameters:

Measuring Range:0.3–6 m/s

Accuracy:Grade 1 to 5

Pressure Parameters:

Range:-0.1 to 0–1 MPa

Accuracy Class:0.25,0.5

Temperature Parameters:

Measuring Range:0–100°C(customizable)

Accuracy:±1°C

Other Parameters:

Display:OLED

Alarm Contact Type:NPN,PNP

Output:Three-channel 4–20mA(Flow/Pressure/Temperature);RS485 Communication+Alarm Output(configurable)

Insulation Resistance:50 MΩat 100 VDC

Operating Voltage:24 VDC

Power Consumption:3 W

Housing Material:Anodized Aluminum Alloy

Interface Material:304 Stainless Steel

Environmental Conditions:-20–85°C,≤85%RH

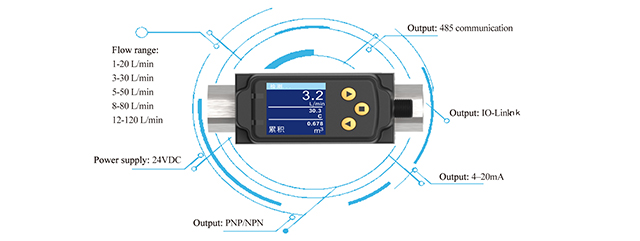

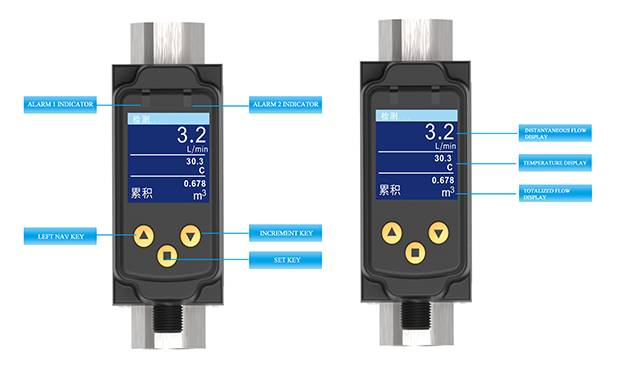

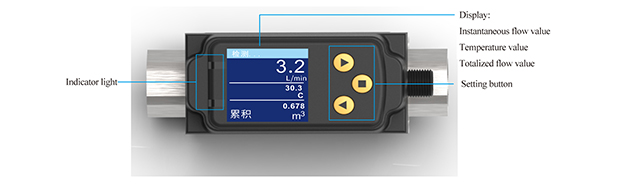

PANEL INTRODUCTION  |  INSTANTANEOUS FLOWDISPLAY.TOTALIZEDFLOWDISPLAY

FXT102 Flow & Temperature Sensor. The TFT screen displays curent pipeline flow value or temperature value. Three buttons onthe panel allow easy setting of flow alarm contacts and temperature alarm contacts.

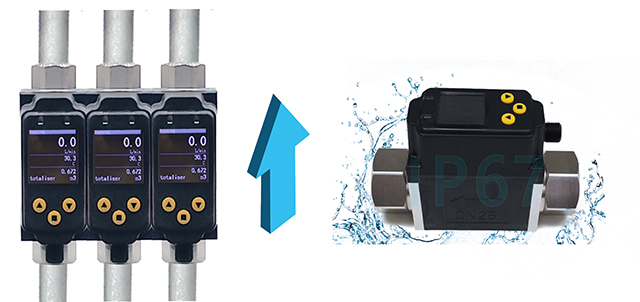

HOUSING PROTECTION CLASS IP67  | COMPACT SIZE,HIGHFLOW CAPACITY, STABLE AND RELIABLE PERFORMANCE

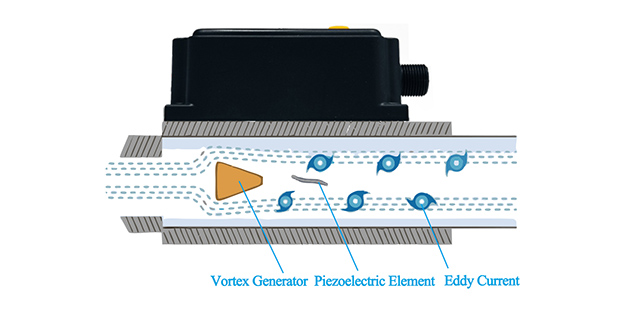

WORKIING PRINCIPLE：

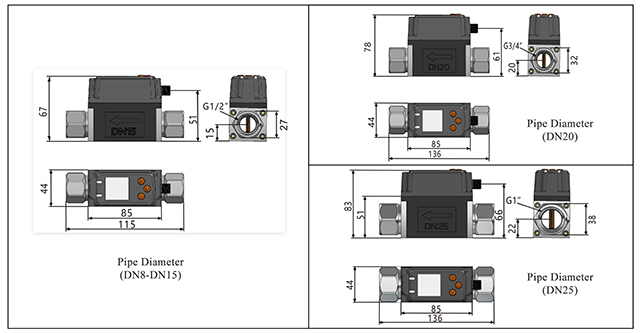

STRUCTURE DIAGRAM：

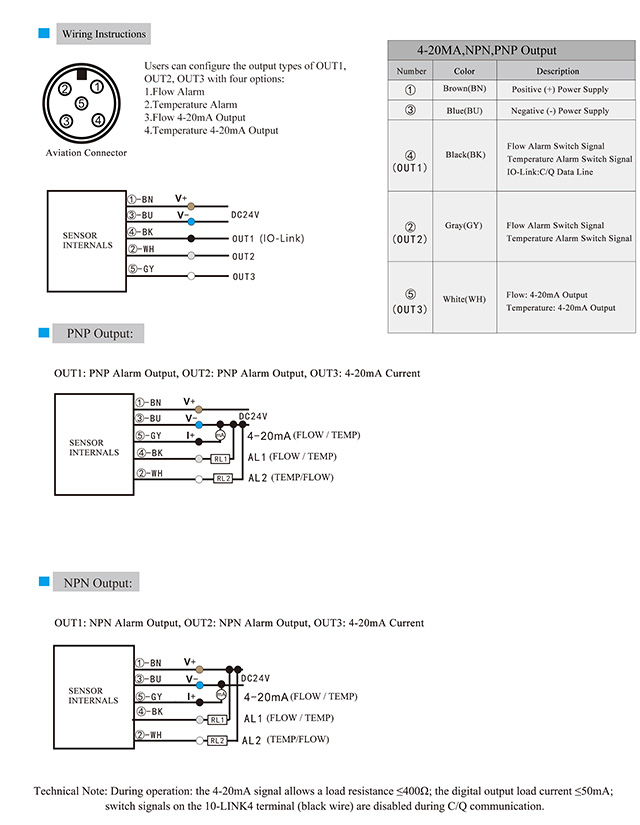

WRING DIAGRAM：

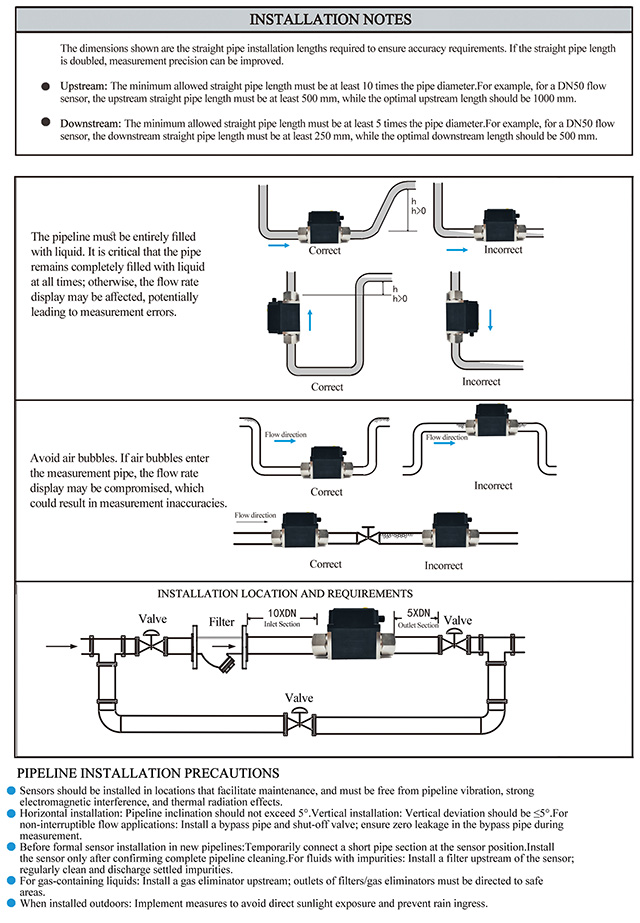

INSTALLATION INSTRUCTIONS：

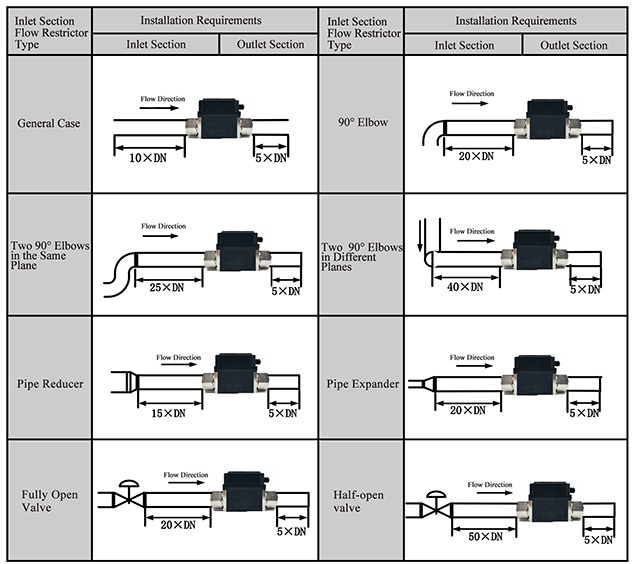

To ensure measurement accuracy of the FXl Flow 'Temperature sensor and minimize interference from disturbed fow and airbubbles, the following requirements apply to upstream/downstream straight pipe sections:

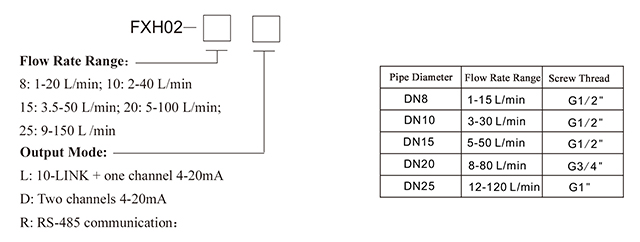

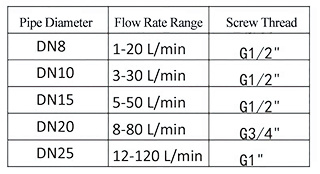

SELECTION GUIDE：

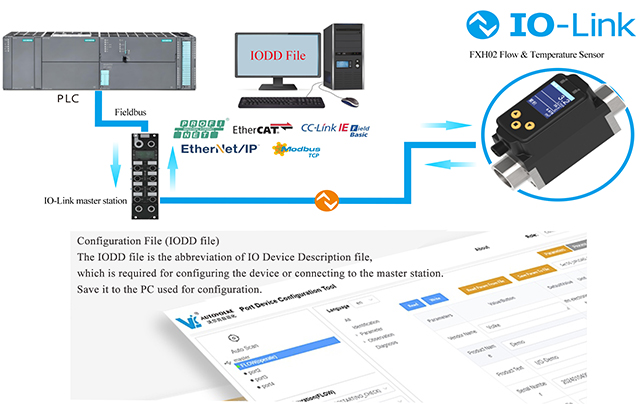

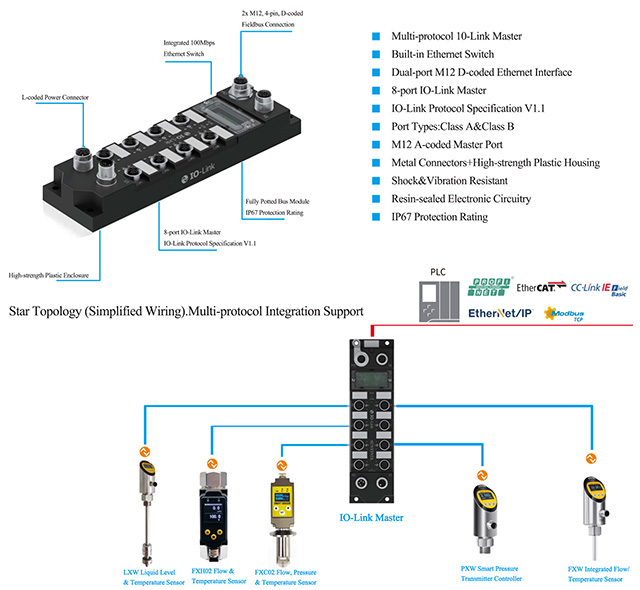

IO-LINK MASTER/SLAVE：

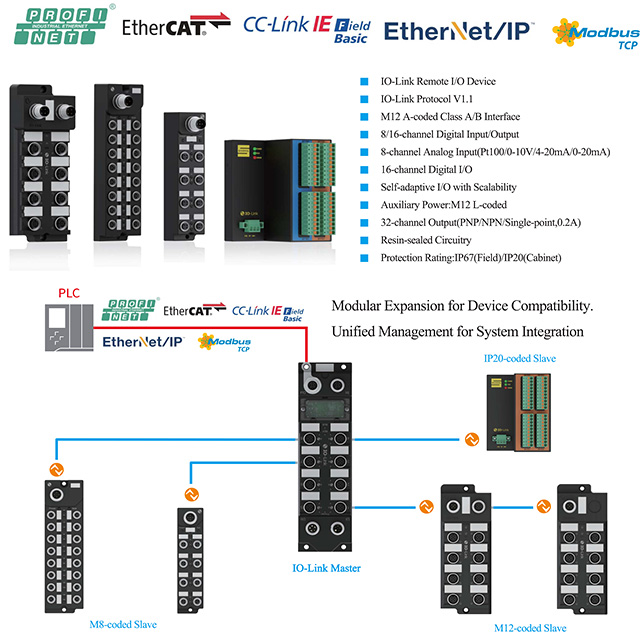

IO-LINK SLAVE STATION：

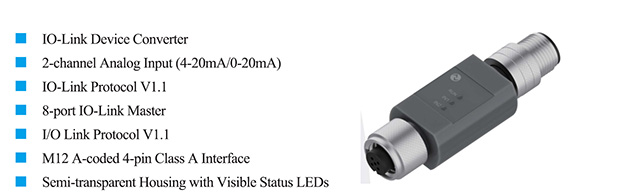

IO-LINK CONVERTER：
