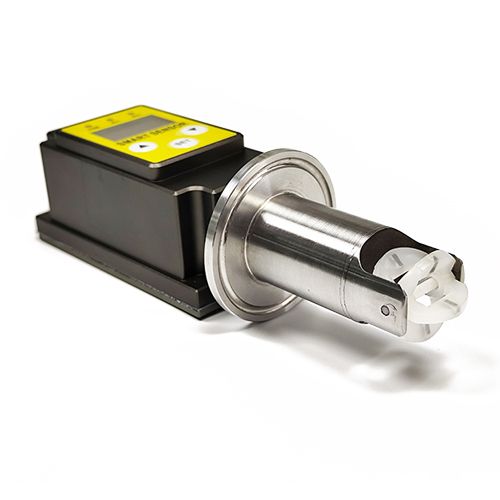

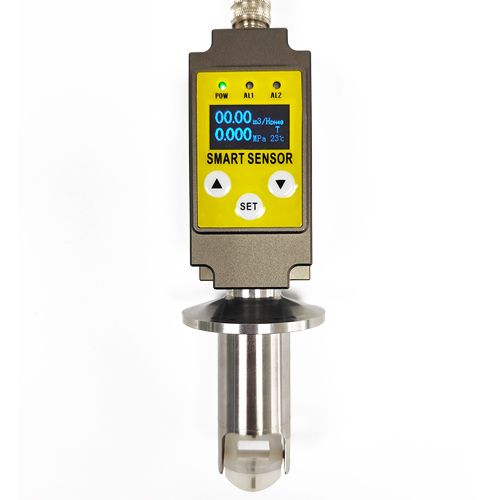

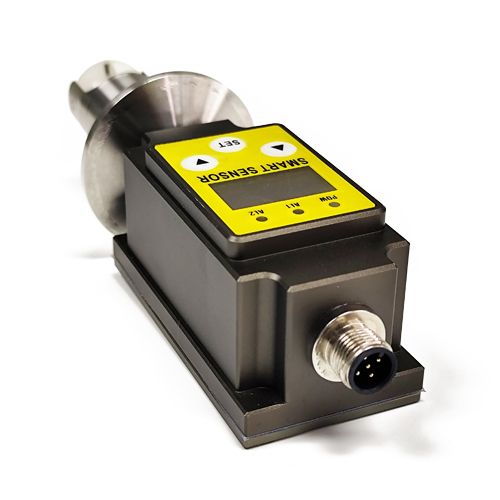

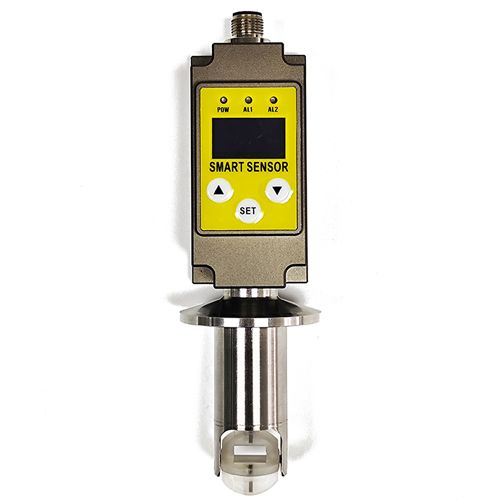

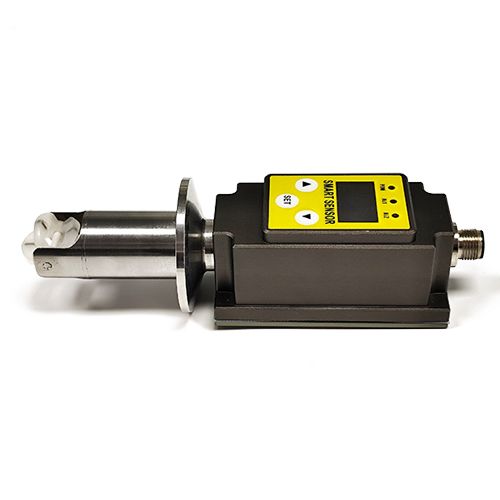

Technical Features:



1. Integrated flow/pressure/temperature sensor

2. Intelligent flow alarm contact output

3. Intelligent pressure alarm contact output

4. Intelligent temperature alarm contact output

5. RS485 communication or triple analog outputs (flow/pressure/temperature)

6. High-visibility self-illuminating OLED display

7. High accuracy with stability and reliability

8. Scale/corrosion resistance

9. Wide measurement range with low minimum flow velocity

10. Minimal pressure loss and excellent repeatability

Working Principle:

As shown in the schematic diagram,the FXC02 sensor probe integrates a pressure sensor,Hall-effect switch,and temperature sensor,while a bearing-supported impeller is centrally mounted in the pipeline.When fluid flows through the pipeline,it impacts the impeller blades,causing rotation proportional to flow velocity.The rotating magnetized impeller induces Hall-effect pulse signals proportional to flow rate,which the transmitter converts to electrical signals;simultaneously,the pressure sensor outputs pressure data and the temperature sensor outputs temperature signals.

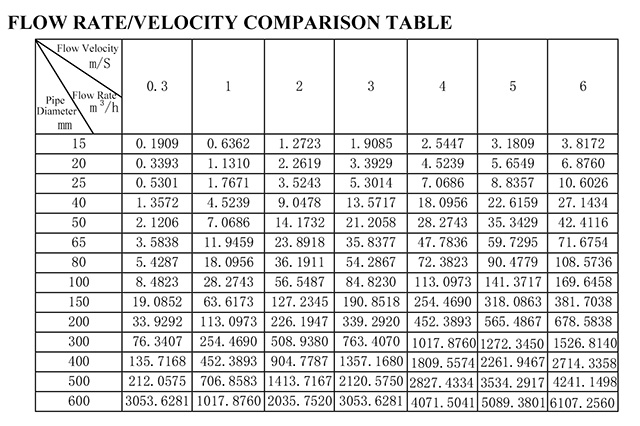

Flow Parameters:

Measuring Range:0.3–6 m/s

Accuracy:Grade 1 to 5

Pressure Parameters:

Range:-0.1 to 0–1 MPa

Accuracy Class:0.25,0.5

Temperature Parameters:

Measuring Range:0–100°C(customizable)

Accuracy:±1°C

Other Parameters:

Display:OLED

Alarm Contact Type:NPN,PNP

Output:Three-channel 4–20mA(Flow/Pressure/Temperature);RS485 Communication+Alarm Output(configurable)

Insulation Resistance:50 MΩat 100 VDC

Operating Voltage:24 VDC

Power Consumption:3 W

Housing Material:Anodized Aluminum Alloy

Interface Material:304 Stainless Steel

Environmental Conditions:-20–85°C,≤85%RH

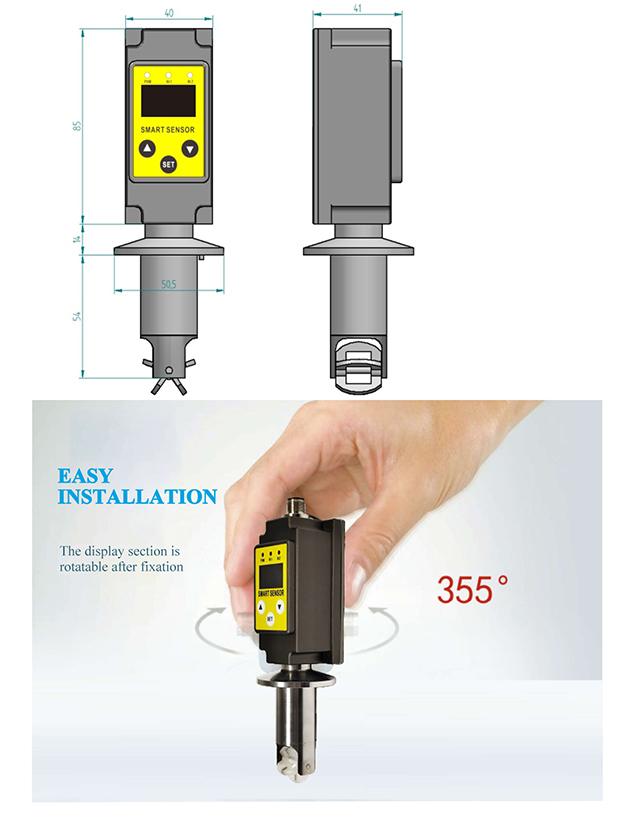

STRUCTURE DIAGRAM：

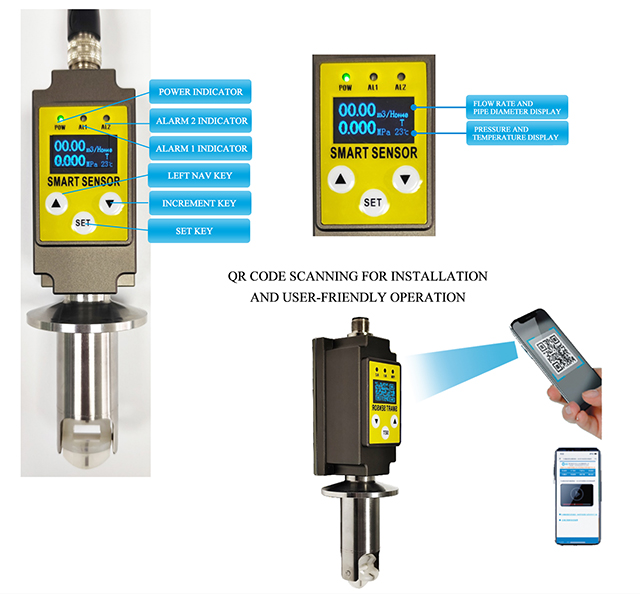

Panel Introduction:

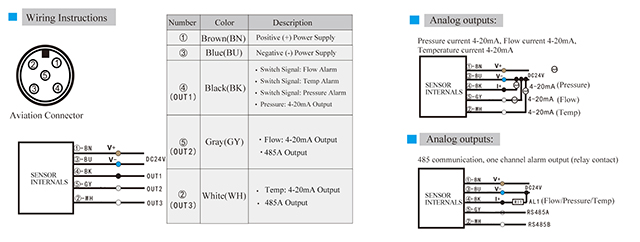

WIRING DIAGRAM：

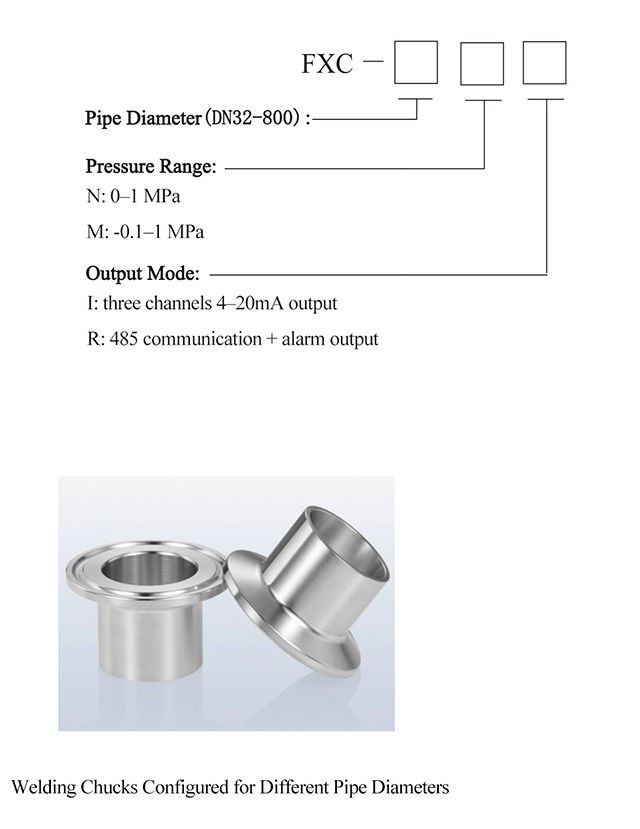

ORDERING INFORMATION：

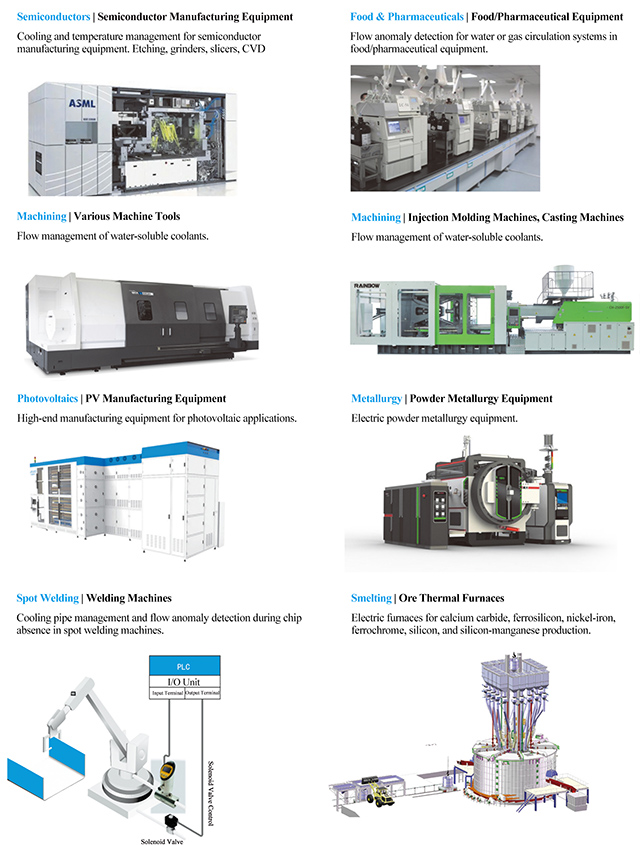

APPLICATION EXAMPLES：
