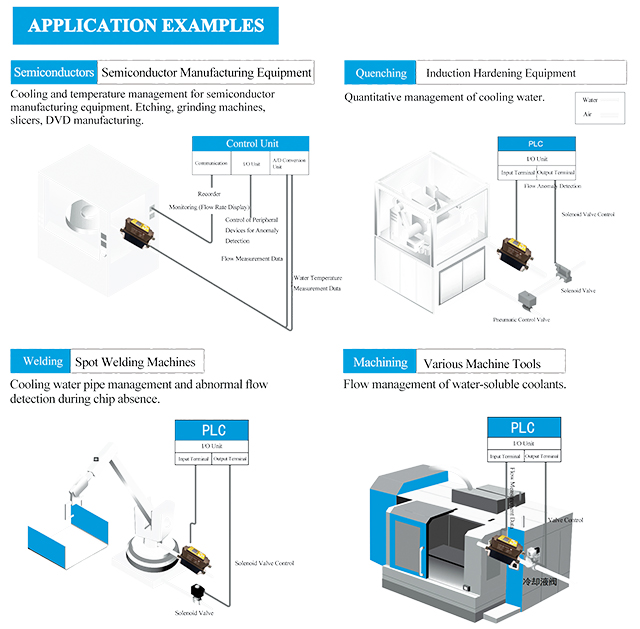

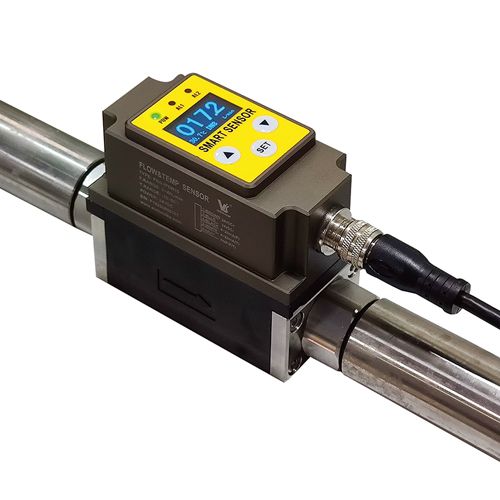

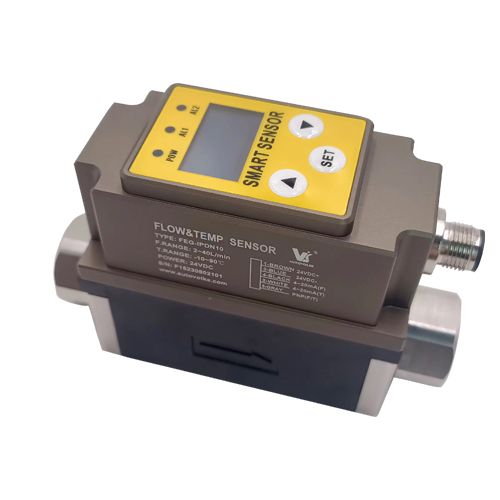

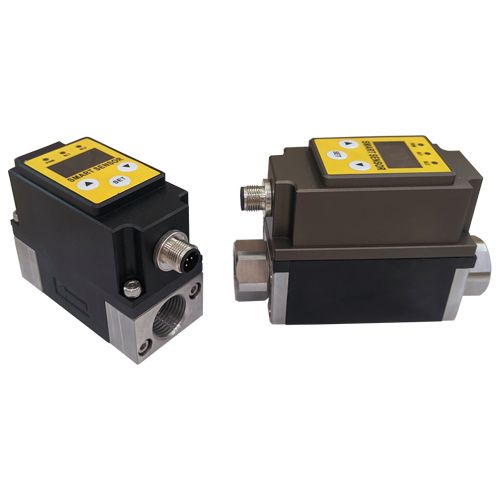

FXH Vortex Street Flow Sensor Product Features:

1. Integrated temperature and flow measurement sensor

2. Self-luminous OLED display (sharp visibility)

3. Intelligent temperature alarm contact output

4. Intelligent flow alarm contact output

5. Chinese + graphical interface with user-friendly menu

6. Digital communication & integrated analog output

7. High accuracy and stability

8. Scale-resistant and corrosion-resistant

9. Fully potted design with waterproof housing

10. High pressure resistance

11. QR code installation guide (online engineer support without manual)

Technical Parameters:

Flow Parameters:

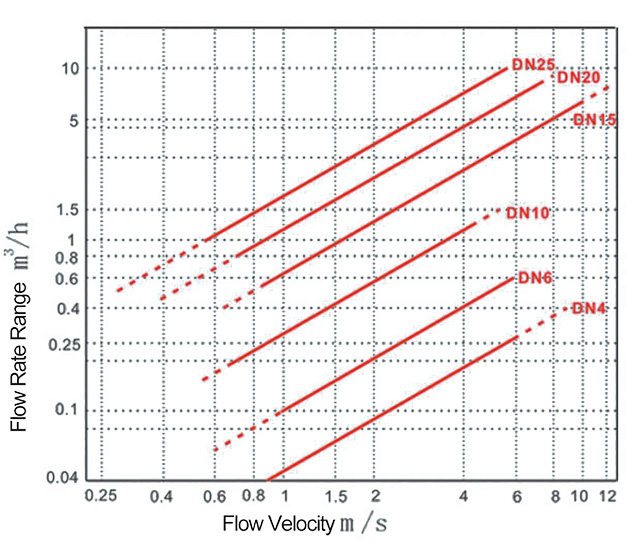

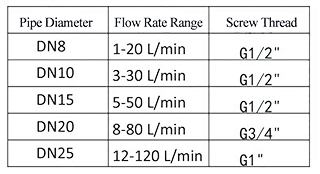

Measuring range: Refer to comparison table

Accuracy: Class 1.5 / Class 2

Display: OLED 128×64

Switching time: ON/OFF<5s (1-5s adjustable)

Output: 1 alarm contact, 4-20mA, 485 communication, pulse output (configurable)

Alarm contact type: NPN/PNP

Insulation resistance: 50MΩ @100VDC

Temperature Parameters:

Measuring range: 0-100℃/-10-90℃/customizable

Accuracy: ≤1℃

Display: OLED 128×64

Output: 1 alarm contact, 4-20mA, 485 communication (configurable)

Alarm contact type: NPN/PNP

Insulation resistance: 50MΩ @100VDC

Other Parameters:

Power supply: 24VDC

Power consumption: 3W (24VDC)

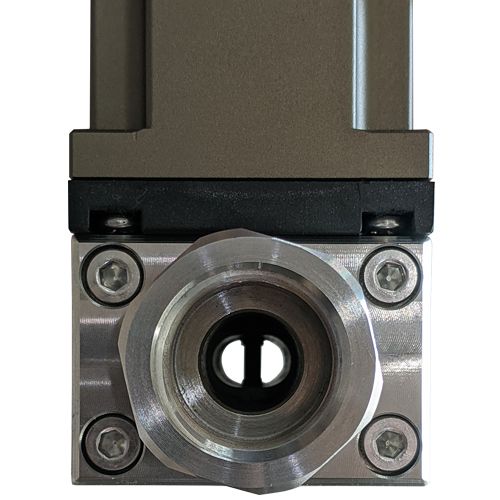

Connection: G1/2", G3/4", G1" internal thread

Housing material: Aluminum alloy

Base material: 304 stainless steel + PP

Environment: -20℃ to 85℃,<85% RH

Protection rating: IP67

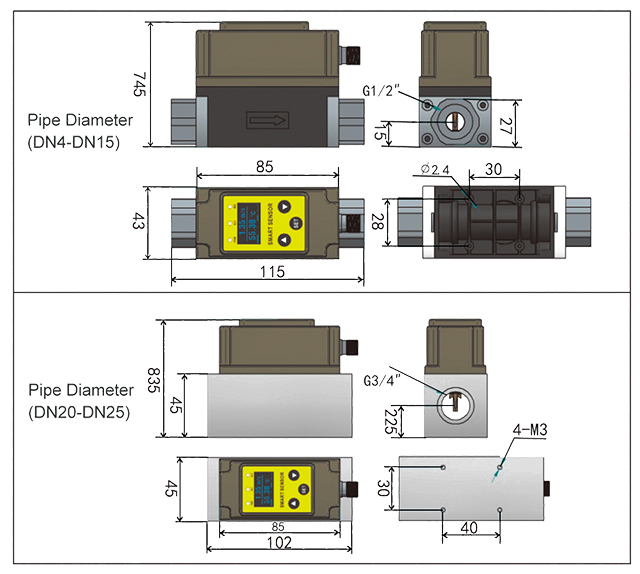

STRUCTURE DIAGRAM：

FXH Modular Flow Stack Diagram：

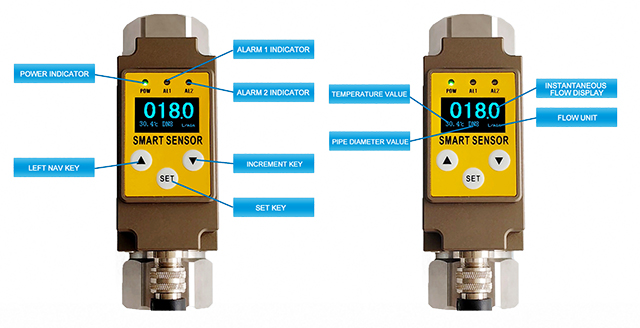

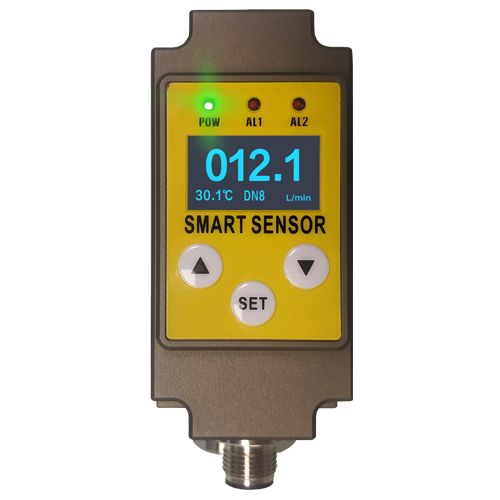

Panel Introduction:

The FXH Vortex Flow Sensor features an OLED display showing real-time pipeline flow rateor temperature values.Three buttons on the panel allow easy configuration of flow alarm contactsand temperature alam contacts.

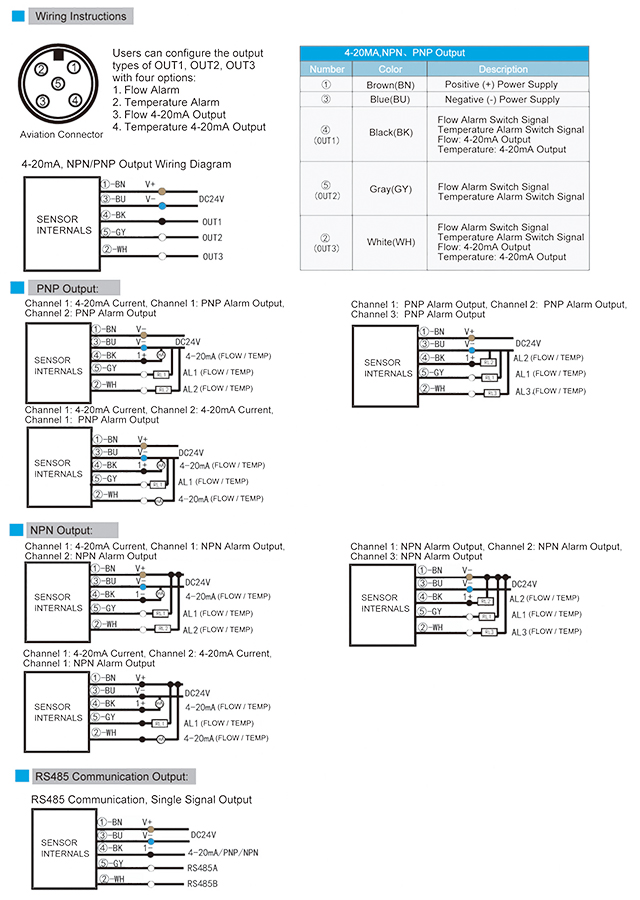

WIRING DIAGRAM：

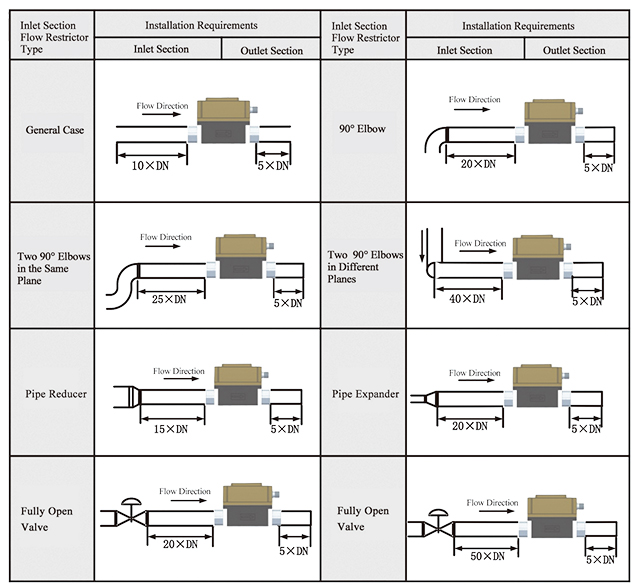

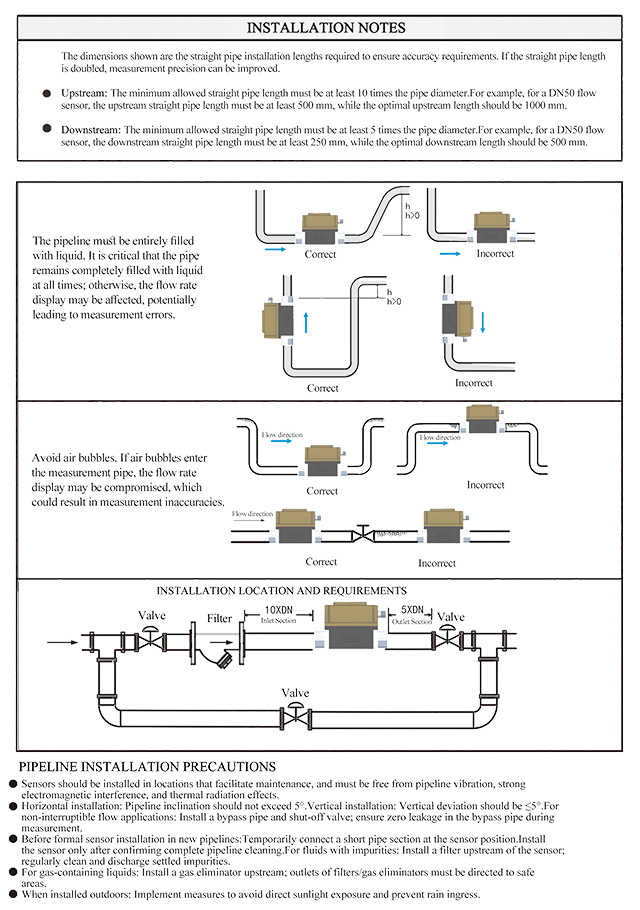

INSTALLATION INSTRUCTIONS:

To ensure measurement accuracy of the FXH Sensor and minimize interferencefrom disturbed flow and air bubbles, the following requirements apply to upstream/downstream straight pipesections:

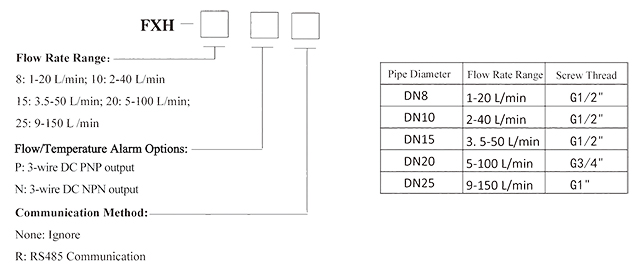

ORDERING INFORMATION：
