Features of the FGS-EX Explosion-Proof Flow Switch:

1. Intrinsically safe explosion-proof design

2. Effectively prevents material entanglement

3. Wide applicable pipe diameter range with adjustable setpoints

4. High-pressure resistance up to 40MPa

5. Visual indicator directly displays flow changes

‌Main Technical Parameters:‌

‌Measuring Range:‌Water:0.03~3 m/s；Oil:0.03~3 m/s

‌Pressure Resistance:‌4MPa(Special:40MPa)

‌Connection:‌Threaded G1/2",G1/4",or others

‌Switching Time:‌ON:Typical≥4s(1~13s,adjustable)；OFF:Typical≥4s(1~15s,adjustable)

‌Temperature Response Time:‌≤12s

‌Operating Voltage:‌DC24V,AC/DC220V

‌Power Consumption:‌2W

‌Output:‌Relay,NPN/PNP output

‌Contact Capacity:‌0.4A/125VAC,2A/30VDC

‌Insulation Resistance:‌50MΩ 100VDC

‌Probe Material:‌304 stainless steel

‌Housing Material:‌Aluminum alloy

‌Operating Temperature:‌-10℃to 60℃

‌Environmental Conditions:‌-20℃to 85℃,≤85%RH

‌Explosion Protection Rating:‌Ex db IIB T6 Gb

‌Protection Rating:‌IP66

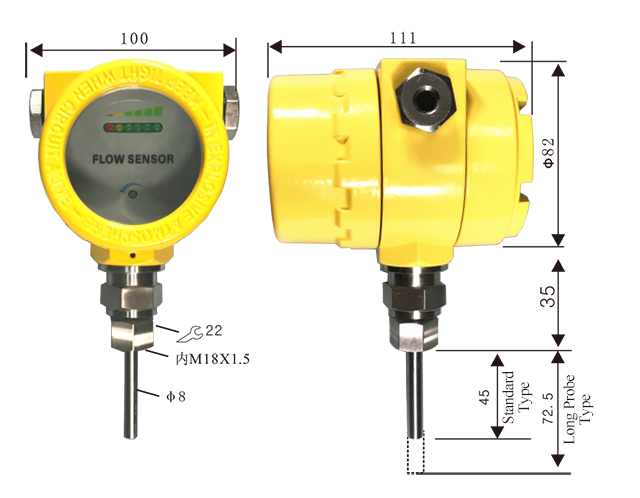

STRUCTURE DIAGRAM：

WIRING DIAGRAM：

ORDERING INFORMATION：
