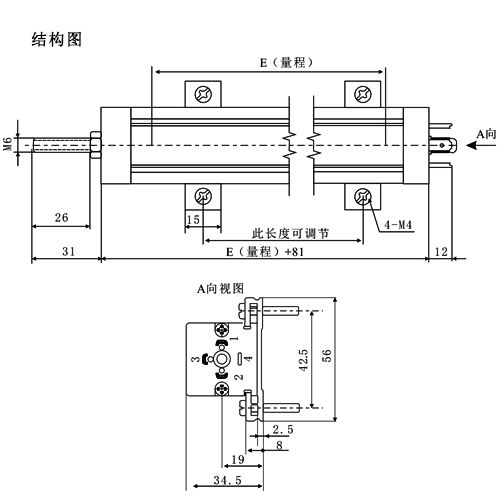

The DHC Rod-Style Displacement Transmitter is designed for direct absolute measurement with a maximum stroke length of 1250mm. It provides high resolution, excellent repeatability (±0.01mm), and maximum linearity error of ±0.05%. Direct installation on mechanical systems eliminates the need for brackets, pinions, or similar accessories. The housing incorporates a fixed stainless steel shaft to ensure stable operation and extended service life. A ball-head slider minimizes misalignment effects during operation. Enhanced resistive track connection technology (dual-correction method) guarantees superior reliability and linearity, while the multi-finger contact brush maintains stable signal output even in extreme operating conditions.

DHC Pull-Rod Displacement Transmitter Characteristics:

1‌. Linear accuracy up to 0.1%‌;

2‌. Extremely high resolution and immune to external noise interference‌;

3‌. Service life exceeds 10^6 cycles‌.

Technical Parameters:‌

‌Standard Stroke(mm):‌50/100/130/150/

175/200/225/250/

275/300/350/375/

400/450/500/600/

750/900/1000/1250

‌Linearity Accuracy:‌±0.05%

‌Output Methods:‌

‌Resistance Output:‌0~5KΩ(≤600mm)

0~10KΩ(>600mm)

‌Current Output:‌4~20mA

‌Voltage Output:‌0~10V

‌Resistance Tolerance:‌±20%

‌Operating Voltage(I/V Output):‌DC24V

‌Maximum Current:‌≤30mA

‌Power Consumption:‌2W

‌Maximum Allowable Voltage:‌36V

‌Temperature Drift:‌<1.5ppm/℃

‌Insulation Resistance:‌>100MΩ(at 500V)

‌Operating Temperature:‌-30~+100℃

‌Storage Temperature:‌-50~+120℃

‌Maximum Moving Speed:‌≤5m/s(Standard)

≤10m/s(Special Type)

‌Moving Force:‌≤10N

‌Protection Class:‌IP65
