Key Features:

1. Integrated Design: Combines temperature transmitter and flow switch.

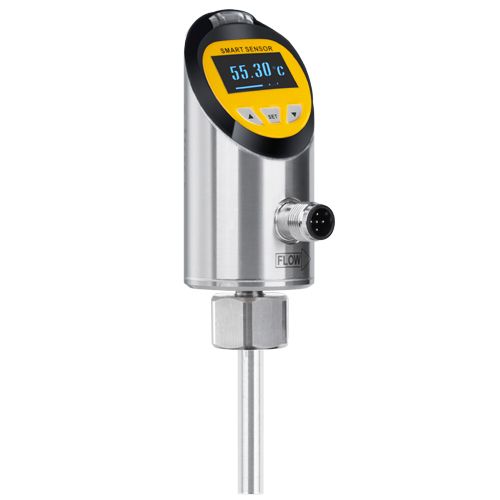

2. Self-Illuminating OLED: High-contrast 128×64 display.

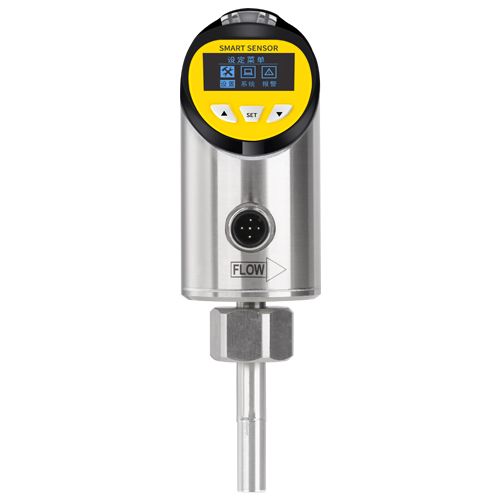

3. Intuitive Chinese GUI: Icon-based menu for ease of use.

4. Smart Temperature Monitoring: Alarm contacts with real-time display.

5. Dual Communication: RS485 + analog output compatibility.

6. QR Code Installation Guide: On-demand technical support access.

Technical Parameters:

Temperature Range:0°C–80°C (customizable)

Display:128×64 OLED

Switching Time:ON: ≥5 s (1–13 s); OFF: ≥5 s (1–15 s)

Output:1 alarm contact + 4–20mA (configurable)

Alarm Contact Type:NPN, PNP

Contact Rating:0.15A/125VAC, 0.5A/30VDC

Insulation Resistance:50 MΩ at 100VDC

Operating Voltage:24VDC

Power Consumption:3W

Interface:M18×1.5 internal thread

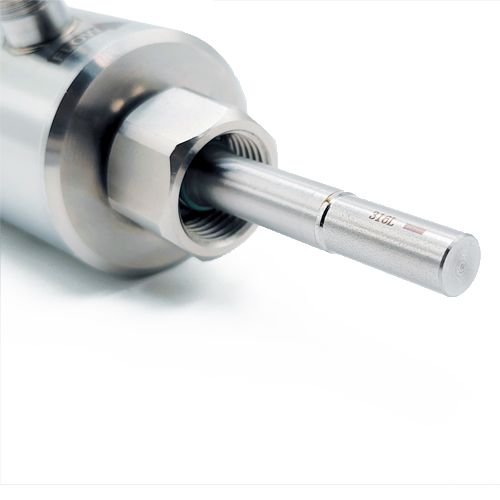

Housing/Probe Material:304 stainless steel

Environmental Conditions:–20°C to 85°C, ≤85% RH

Protection Rating:IP67
